PARTS FOR UVC SYSTEMS / QUARTZ SLEEVES

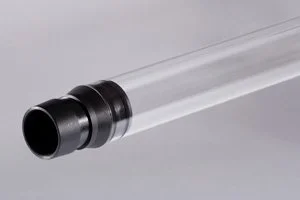

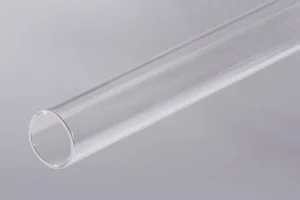

UVC Spectrum can supply quartz sleeves, which in most cases serve as protective outer casings for the lamps in order to keep water from damaging the electronics in ultraviolet disinfection systems. UVC Spectrum’s quartz sleeves, also known as tubes, jackets, or vessels, can be used in many different water disinfection reactors types and we have the capability to produce these sleeves in custom lengths, diameters, and configurations upon request. Our services include cutting, doming, bending, polishing and flaring.
Common Sleeve Sizes:
| UVCS Description | Inner Diameter |
Outer Diameter |
Wall Thickess |
|---|---|---|---|
| mm | mm | mm | |
| UVCS 20x22.5 | 20 | 22,5 | 1,25 |
| UVCS 20x23 | 20 | 23 | 1,5 |
| UVCS 22x24.5 | 22 | 24,5 | 1,25 |
| UVCS 22x25 | 22 | 25 | 1,5 |
| UVCS 25x28 | 25 | 28 | 1,5 |
| UVCS 26x30 | 26 | 30 | 2 |
| UVCS 30x33 | 30 | 33 | 1,5 |
| UVCS 34x38 | 34 | 38 | 2 |
| UVCS 35x38 | 35 | 38 | 1,5 |
| UVCS 36x40 | 36 | 40 | 2 |
| UVCS 44x48 | 44 | 48 | 2 |
